Product Details:
|
| Warranty: | 1YAER | Usage: | Ore,mining Used,Rock Drilling |
|---|---|---|---|
| Weight: | 27kg | Power Type: | Pneumatic |
| Type: | Rotary Drilling Rig | Drilling Depth: | 5M |
| Color: | Yellow,green,black | Application: | Blast Hole Drilling And Breaking,drill Rig |
| High Light: | hydraulic jack hammer rock drill,YT29A hydraulic jack hammer,5m hand held rock drill |
||

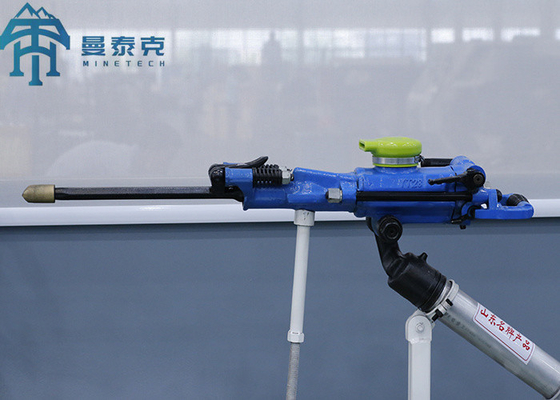

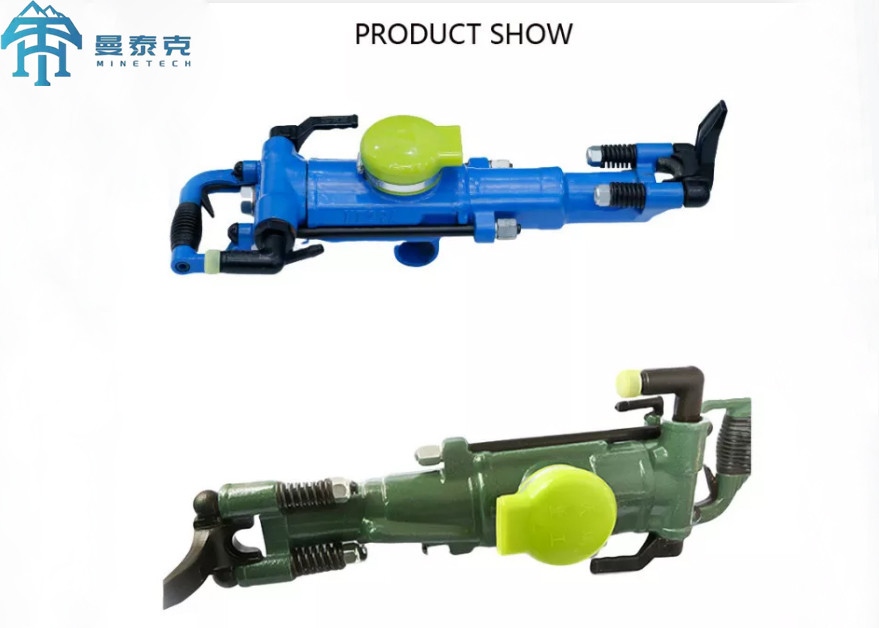

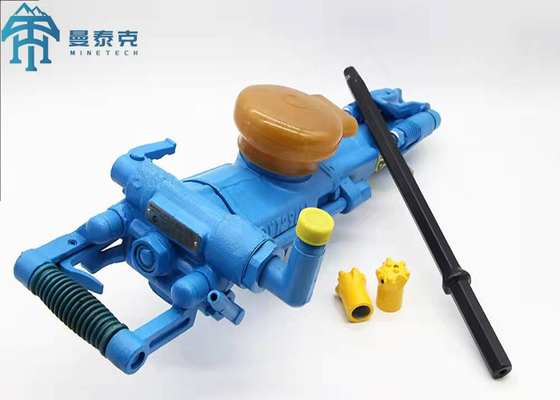

Portable Rock Drill Machine Pneumatic Hydraulic Jack Hammer YT29A Rock Drilling Machine
Applications:
Pneumatic Machinery has a wide range of pusher leg and stopper rock drills to cover all construction, tunneling and mining applications in different rock formations. They are robust but simply designed, with high impact energy and low air consumption.
The YT29A rock drill is the most rugged, powerful and highly efficient rock drill in the range .It gives improved productivity and drill steel economy and can be used on all rock formation and in all kinds of applications.
| YT29A AIR LEG ROCK DRILL | |
| Weight | 27 kg |
| External Dimensions(L W H) | 659x248x205 mm |
| Cylinder Diameter | 82 mm |
| Piston Structure Stroke | 60 mm |
| Working Air Pressure | 0.4~0.63 MPa |
| Impact Frequency | ≥39 Hz |
| Impact energy | ≥78 J |
| Air Consumption | ≤88 L/s |
| Rotation Torque | ≥20 N.m |
| Water Pressure | 0.3~0.48 MPa |
| Air Pipe Inner Diameter | 25 mm |
| Water Pipe Inner Diameter | 13 mm |
| Drilling Hole Diameter | 34~45 mm |
| Drilling Hole Depth | 5 m |
| Working Temperature | -30~45℃ |
| Shank Size | H22x108±1 mm |
| FT160A | FT160B | FT160C | FT170 | |
| Weight | 17 kg | 16 kg | 18 kg | 18 kg |
| Length | 1668 mm | 1428 mm | 1820 mm | 1668 mm |
| Propulsion Stroke | 1338 mm | 1098 mm | 1490 mm | 1338 mm |
| Cylinder Inner Diameter | 65 mm | 65 mm | 65 mm | 67 mm |
Company Profile:
Hebei Minetech Machinery Technology Co, Ltd. is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province,China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.
With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.
Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.
