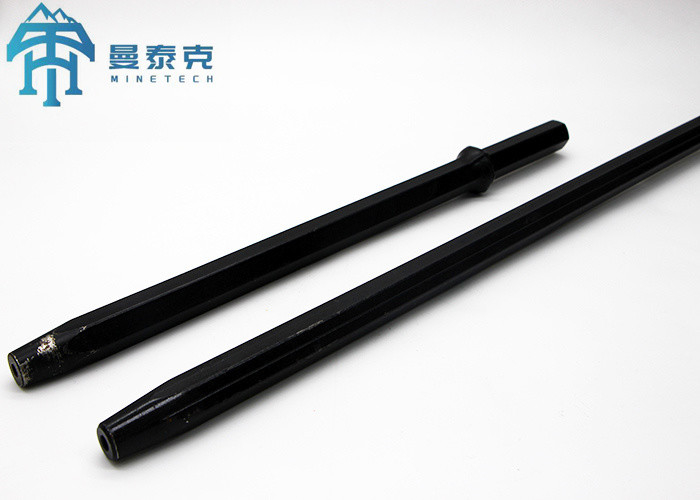

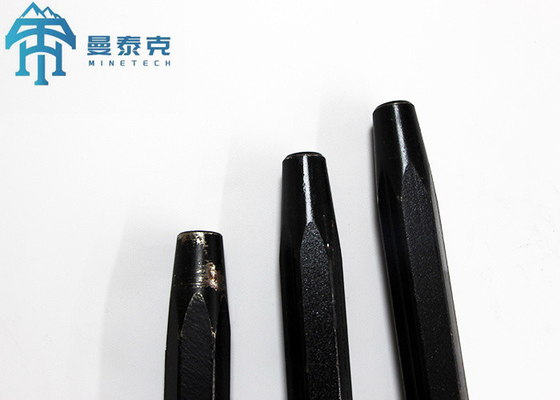

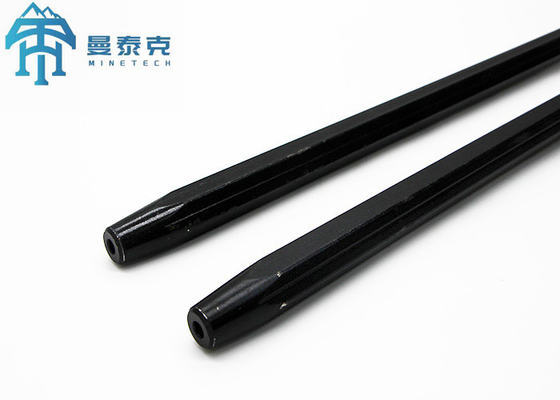

Hex22 108mm Hexagonal Drill Rod Jack Hammer Rock Drilling Tools

Hex22 108mm Jack Hammer Rock Drilling Tools Hexagonal Drill Rod

Prodcut information:

Tapered Drill rod is also called the Hexagonal Drill Rod. Tapereddrillrod is suitable for small pneumatic rock drills for shallow hole drilling operations, and are generally made of H22 and H25 hexagonal hollow drill steel. It needs to be matched with the taper drill bit for rock drilling, and It is usually used in rock drilling operations in quarries, coal mines, road beds, construction and other fields. Conventional taper angles for tapered drill rods are 7°, 11°and 12°.

Application:

Rock Drilling/Water Well Mining.Application in granite and marble quarry, gold mine, railway, tunnel, etc.

The rod is used for rock drilling, blasting holes, and drilling works in the quarries, metallic mines, tunneling and constructions.

Feature:

Carburized technology for superior wear resistant and service life.

Measurements:

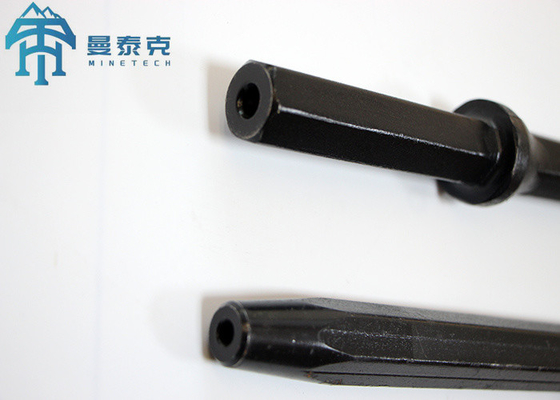

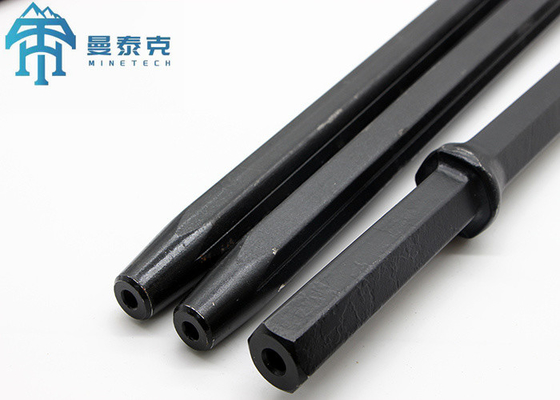

It usually has a forged collar to maintain the proper shank striking face position in the rock drill, and a tapered bit end.

Tapered steel lengths available from 0.6 m to 3.6 m in length- Are measured from the collar to the bit end.
