800mm H22 Taper Drill Rod Pneumatic Rock Drilling Tools

Large Image : 800mm H22 Taper Drill Rod Pneumatic Rock Drilling Tools

Product Details:

Place of Origin:	CHINA
Brand Name:	MTH
Certification:	ISO 9001
Model Number:	11 degree

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	pallet or wooden case
Delivery Time:	10-20 days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	10 tons per month

Contact Now

800mm H22 Taper Drill Rod Pneumatic Rock Drilling Tools

Description

Product Name:	Tapered Drill Rod	Processing Type:	Forging,Heat Treatment
Use:	Ore Mining	Material:	Carbon Steel
Machine Type:	Drilling Tools	Place Of Origin:	China
Advantage:	Carburized Technology	Shank:	H22*108mm
Weight:	3.03 Kg/m	Certification:	ISO 9001
Highlight:	hexagonal taper drill rod , h22 taper drill rod , 800mm hex drill rod

800mm H22 Pneumatic Rock Drilling Tools Taper Drill Pipe Hexagonal Drill Rod

Prodcut information:

Tapered Drill rod is also called the Hexagonal Drill Rod. Tapereddrillrod is suitable for small pneumatic rock drills for shallow hole drilling operations, and are generally made of H22 and H25 hexagonal hollow drill steel. It needs to be matched with the taper drill bit for rock drilling, and It is usually used in rock drilling operations in quarries, coal mines, road beds, construction and other fields. Conventional taper angles for tapered drill rods are 7°, 11°and 12°.

Application:

Rock Drilling/Water Well Mining.Application in granite and marble quarry, gold mine, railway, tunnel, etc.

The rod is used for rock drilling, blasting holes, and drilling works in the quarries, metallic mines, tunneling and constructions.

Feature:

Carburized technology for superior wear resistant and service life.

Suitable Rock Drill:

The tapered drill rods are used for Penumatic rock drill and Hydraulic rock drill.

Medium hard to hard and abrasive rock formations. Such as Y24, Y26, YT24, YT27, YT28, YT29 and YN27C rock drill

Specification:

Drill Rod	Length(mm) with shank	Foot	Weight approx(kg)	Taper	shank
Tapered Drill Rod	1320mm	4''	4.4	7,11,12 degree	108mm
Tapered Drill Rod	1632mm	5''	5.4	7,11,12 degree	108mm
Tapered Drill Rod	1936mm	6''	6.4	7,11,12 degree	108mm
Tapered Drill Rod	2546mm	8''	8.4	7,11,12 degree	108mm

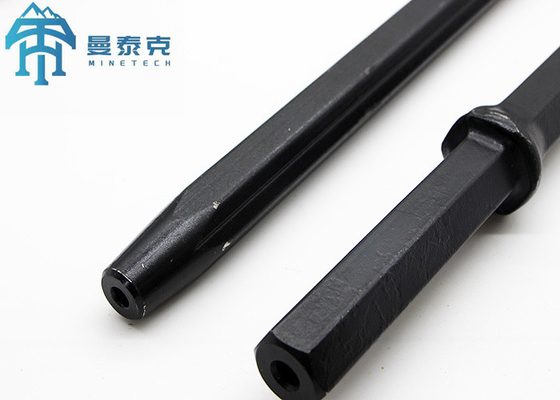

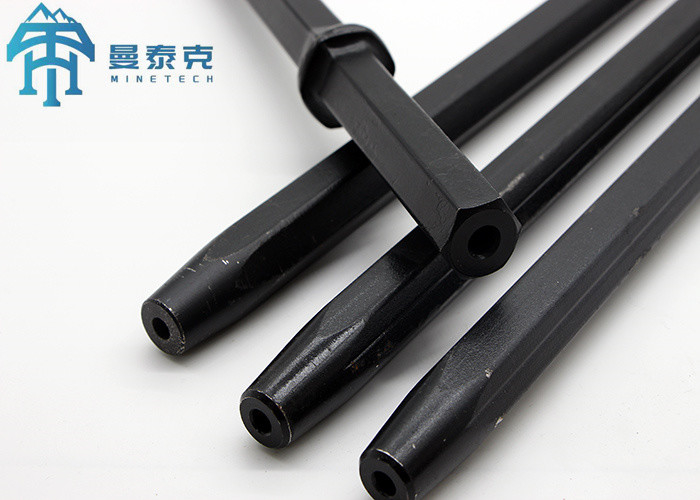

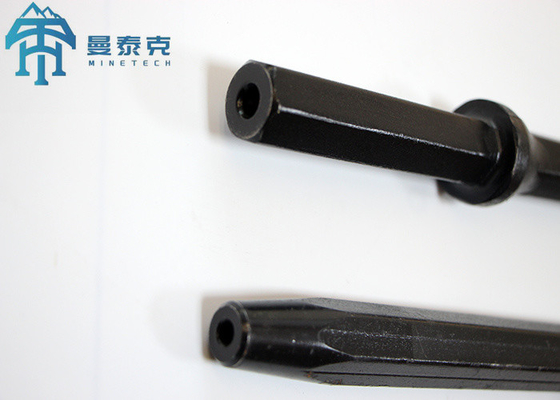

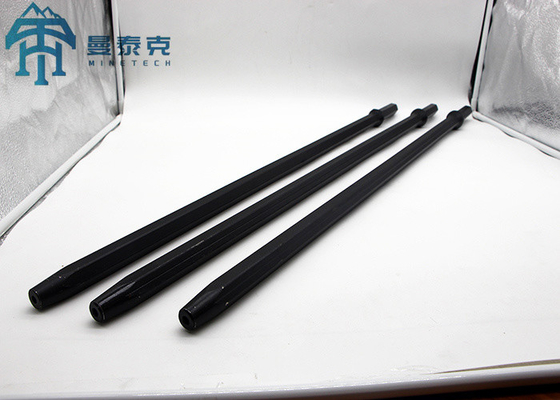

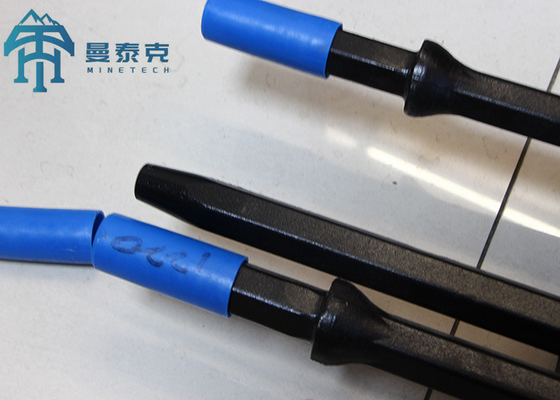

800mm H22 Taper Drill Rod Pneumatic Rock Drilling Tools 0

800mm H22 Taper Drill Rod Pneumatic Rock Drilling Tools 1
